PowerZone 200 control panel overview

PowerZone 200 Control Panel

Introduced in April 2025, the PowerZone 200 controller is available on air-cooled generator models rated 10kW, 14kW, and 18kW. It replaces the Evolution 2.0 controller and adds expanded remote control capabilities.

Model numbers using this controller:

• G007257-0
• G007258-0
• G007259-0

The PowerZone 200 serves as the generator’s brain, handling several key functions:

• Utility sensing (loss and reconnection)
• Starting and stopping the generator
• Power transfer
• Voltage regulation
• Exercise scheduling
• Battery charging

Physical differences

Unlike the Evolution and Nexus panels, which included a digital display, the PowerZone 200 does not have a screen.

Functionality

• Service mode: How to place a generator into service mode
• Power transfer during exercise: Using the "Exercise Now" and "Exercise now and transfer power" commands
• Adjustable extended exercise time: Can I change the exercise cycle duration?

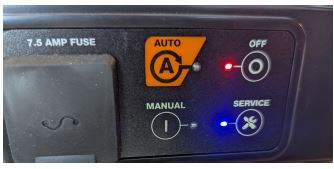

Operating modes: Auto, Manual, Off, and Service

• Auto: Automatically starts and powers the home when utility power is lost.
• Manual: Starts the engine but does not transfer power unless utility service fails.
• Off: The generator will not start, even if utility power is lost.
• Service mode: Allows the generator to remain off for maintenance or testing. Suppresses alerts and notifications during this time.

Connectivity options

The PowerZone 200 is compatible with the Cellular Connectivity device.

Applications

The primary tool for remote monitoring is the Mobile Link application. The Field Pro app also provides basic features for end users and advanced tools for technicians.
